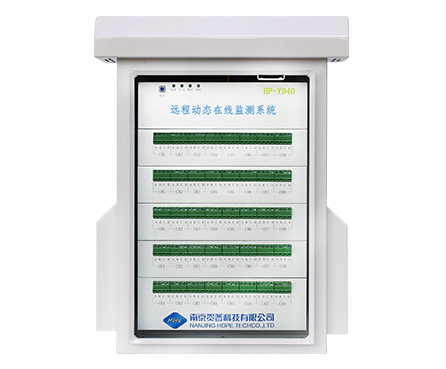

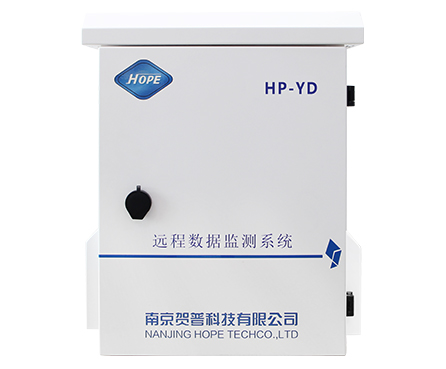

HP-YD40 is a modular, multi-channel remote monitoring and data acquisition (DAQ) system designed for long-term field measurement and online supervision. It supports mixed sensor inputs per channel (strain, force, voltage, current, resistance, IEPE accelerometers, magnetic speed/displacement sensors, etc.) with synchronous sampling, display, and storage—ideal for industrial condition monitoring and structural health monitoring (SHM).
| Universal Mixed Inputs | Each channel can connect different sensors (strain/force/voltage/current/resistance/IEPE acceleration/magnetic speed & displacement) without additional auxiliary equipment. |
|---|---|
| Synchronous Multi-Point Acquisition | All channels sample, display, and store in sync, supporting high-speed synchronized logging (spec listed up to 200 Hz). |
| Independent Channel Architecture | Per-channel stable amplification/conditioning + high-performance ADC improves accuracy, consistency, and anti-interference for long-term monitoring. |
| Auto Balance / Zeroing | Automatic channel balancing to clear zero, plus manual offset/zero settings to match test requirements. |
| High Accuracy Measurement | Built-in precision 120 Ω bridge resistor per channel and stable conditioning deliver measurement accuracy to ±0.2% (system spec). |
Product Type: Lightweight remote online monitoring + multi-sensor DAQ
Channel Capacity: Modular 8–40 channels (configurable)
Use Cases: Remote field tests, unattended monitoring, multi-point synchronized measurement
Connectivity: 100 Mbps Ethernet + 4G, supports offline operation

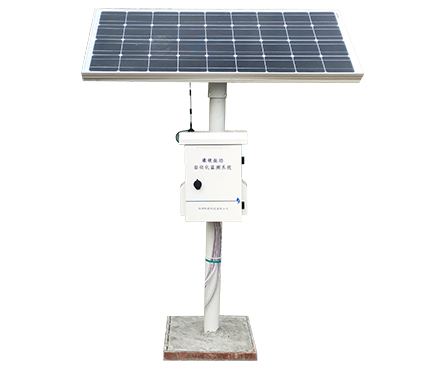

Power Options: Large-capacity battery + solar / wind charging; smart power management for long runtime
Video Supervision (optional/available): 360° PTZ, 16× optical zoom, e-fence, e-patrol
HP-YD40 is built around independent per-channel signal conditioning and high-performance A/D conversion for stable, interference-resistant measurement. Every channel can be configured for different sensor types without extra external conditioning modules, enabling true mixed-input acquisition. The system supports fully synchronized multi-point sampling, and provides automatic balancing/zeroing per channel, with manual zero setting for experiments that require offset points.
Remote online monitoring for bridges, buildings, tunnels, towers (SHM)
Industrial equipment condition monitoring (vibration, load, strain trends)
Field testing for automotive, rail, aerospace, energy, and heavy machinery
Multi-point synchronized tests: load/strain + speed + displacement correlation
Unattended outdoor monitoring with battery + renewable charging
Supported measurement inputs (mixed per channel):
Strain / strain gauge (full bridge, half bridge, quarter bridge 2-wire, quarter bridge 3-wire)
Force / load (via load cells, pressure/force transducers depending on wiring)
Voltage / current
Resistance
IEPE accelerometers (vibration monitoring)
Magnetic speed / displacement sensors
Built-in conditioning for multiple sensor types (no external conditioner required in typical setups)
| Item | Specification |
|---|---|
| Channel / measurement points | 8–40 channels optional, modular design |
| Sampling rate | 1 Hz–1000 Hz, software configurable (synchronized high-speed logging spec also listed up to 200 Hz) |
| Acquisition method | All-channel synchronous acquisition |
| Mixed input | Per-channel selectable input type; built-in sensor conditioning circuits |
| Strain bridge types | Full / Half / Quarter (2-wire) / Quarter (3-wire) |
| Measurement accuracy | ±0.2% |
| Stability (input shorted) | ±4 counts / 4 hours; ±1 count / °C |
| Communication | 100 Mbps Ethernet, 4G, supports offline work |
| Working modes | Continuous / Timed / External trigger; duration configurable |
| Power management | Large battery; solar & wind charging options; smart power management; up to 7 days autonomous continuous operation |
| Video monitoring | 360° PTZ, 16× optical zoom, electronic fence, electronic patrol |
Q1: How many channels can I configure on HP-YD40?
A: It supports 8 to 40 channels with a modular design, so you can scale based on measurement points.
Q2: Can I connect different sensor types on different channels at the same time?
A: Yes. HP-YD40 supports mixed inputs per channel, so strain + IEPE acceleration + voltage/current, etc., can run simultaneously.
Q3: What is the sampling rate?
A: The system supports 1–1000 Hz software-configurable sampling. For fully synchronized high-speed logging, the spec also lists up to 200 Hz.
Q4: Does it support strain gauge bridge wiring?
A: Yes—full bridge, half bridge, quarter bridge (2-wire), quarter bridge (3-wire).
Q5: How accurate is the measurement?
A: System measurement accuracy is specified at ±0.2%, with per-channel precision components (including a built-in 120 Ω bridge resistor).
Q6: Can it work in remote outdoor sites without stable AC power?
A: Yes. It supports large-capacity battery and optional solar / wind charging, plus smart power management for long unattended operation.
Q7: What communication options are available?
A: 100 Mbps Ethernet and 4G are supported, and the system can also support offline operation.
Q8: What triggering/recording modes are supported?
A: Continuous, timed/scheduled, and external trigger acquisition are supported, with configurable recording duration.
