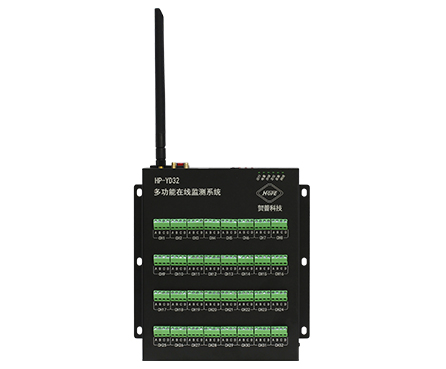

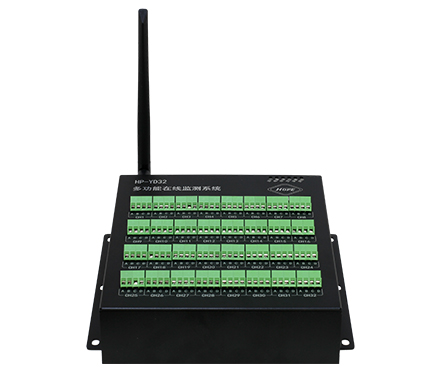

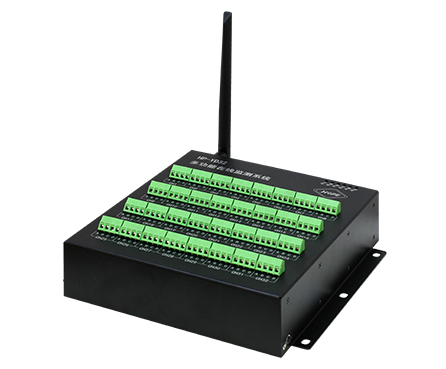

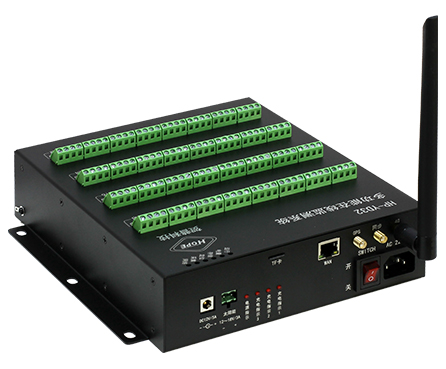

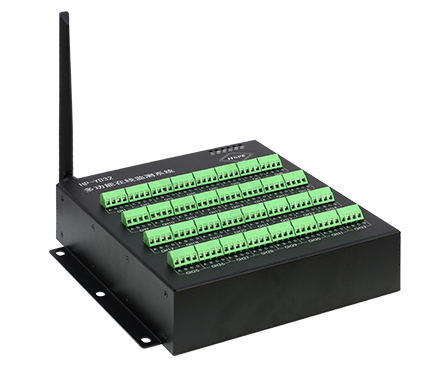

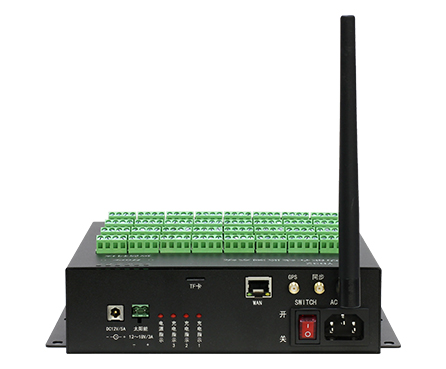

HP-YD32 is a lightweight, remote online monitoring and data acquisition (DAQ) system built for long-term, multi-point measurement. With 32 synchronized channels and built-in signal conditioning, it supports mixed sensor inputs—strain, voltage, current, resistance, IEPE accelerometers, magnetic sensors, and more—without extra external modules.
| True Mixed Inputs per Channel | Connect force/strain/voltage/current/resistance/IEPE/magnetic sensors directly—no additional auxiliary equipment required |
|---|---|
| 200 Hz Synchronous Acquisition | All channels sample, display, and store data simultaneously (max 200 Hz) |
| Independent Channel Architecture | Dedicated conditioning + high-performance ADC per channel for accuracy and consistency |
| Strong Anti-Interference | Improves signal integrity in noisy industrial or field environments |
| Auto Balance (Zeroing) | One-click per-channel balance for clean baselines; supports custom unbalance point settings |
| High Accuracy Measurement | Built-in precision bridge components and stable conditioning for reliable strain/bridge measurements |
| Long-Term Stability | Designed for stable readings over extended monitoring periods |
Model: HP-YD32
Product Type: Lightweight remote online monitoring / multi-channel data acquisition system
Core Capability: 32 channels, all-channel synchronous sampling, display, and data storage
Mixed-Input Design: Each channel can be configured independently with built-in conditioning circuits for multiple sensor types
Measurement Performance: High anti-interference design and long-term stability; measurement accuracy up to ±0.2%
HP-YD32 is designed for engineering tests and continuous monitoring where multiple sensors must be collected at the same time. Each channel includes an independent, high-stability signal amplification/conditioning stage and a high-performance A/D converter to maintain consistency and reliability over long deployments. Automatic balance (zero) helps streamline setup, while manual zero configuration supports special test requirements.
Structural health monitoring (bridges, buildings, tunnels)
Geotechnical monitoring (soil/earth pressure, pore water pressure, slope monitoring)
Lab or field load testing (force, torque, displacement, strain)
Machinery and equipment monitoring (vibration/acceleration, speed, displacement)
Industrial process instrumentation (voltage/current loop sensors, 4–20 mA transmitters)
Strain / Bridge Sensors
Full bridge, half bridge, quarter bridge (2-wire), quarter bridge (3-wire)
Strain-based force, pressure, torque, displacement sensors
Voltage Inputs
Single-ended voltage, differential voltage
Current Inputs
Supports current-output sensors (including common transmitter ranges)
Temperature
Thermocouples (various types)
Pt100 RTD
Pressure / Load
Piezoresistive pressure sensors
Load cells (weighing sensors)
Pore water pressure gauges, earth pressure gauges (voltage/current output types)
Displacement
Strain-type, resistive type, LVDT displacement sensors
Acceleration / Velocity / Speed
IEPE accelerometers (built-in constant current source)
Magnetic/electromagnetic type sensors (velocity/speed/displacement)
Channels (Measurement Points): 32 channels
Sampling Rate: Up to 200 Hz (software adjustable)
Acquisition Mode: All channels synchronous sampling
Mixed Input: Per-channel selectable input type; built-in sensor conditioning circuits
Strain / Bridge
Bridge Types: Full / Half / Quarter (2-wire) / Quarter (3-wire)
Strain Ranges (selectable): ±3000 με, ±10000 με, ±32768 με, ±100000 με
Bridge Excitation: 0–5 V / 100 mA, software setting accuracy 0.1%
Voltage
Modes: Single-ended, differential
Ranges (selectable): ±50 mV, ±500 mV, ±1 V, ±5 V, ±10 V
Current
Ranges: 0–20 mA, 0–40 mA, 0–80 mA
Temperature
Thermocouple: 0–1500 °C (various types)
Pt100: 0–300 °C
Other Excitation
Aux Excitation Voltage: 24 V
IEPE Constant Current Source: Built-in 4 mA IEPE supply and conditioning
Performance
Measurement Accuracy: ±0.2%
Stability (input shorted): ±3 με / 4 hours; ±1 με / °C
Q1: Can different channels measure different sensor types at the same time?
Yes. HP-YD32 supports mixed inputs, and each channel can be configured independently (strain/voltage/current/IEPE, etc.).
Q2: What does “synchronous acquisition” mean in real tests?
All channels sample at the same time, which is critical for comparing multi-point data (e.g., load/strain/displacement correlations).
Q3: Is 200 Hz fixed?
No. The sampling rate is software adjustable up to 200 Hz.
Q4: Do I need an external IEPE power module for accelerometers?
No. The system includes a built-in 4 mA constant current source and conditioning circuit for IEPE sensors.
Q5: How do I zero (balance) strain channels before a test?
Each channel supports automatic balance (zeroing). Manual zero/unbalance point settings are also available for special test requirements.
Q6: What voltage/current signal ranges are supported?
Voltage supports single-ended/differential with ranges from ±50 mV up to ±10 V. Current supports 0–20 mA, 0–40 mA, and 0–80 mA.
Q7: What bridge configurations are supported for strain gauges?
Full bridge, half bridge, quarter bridge (2-wire), and quarter bridge (3-wire) are supported, with multiple selectable strain ranges.
