HP-MTAS is a professional modal testing and analysis software suite designed for structural dynamics and vibration engineering. It helps engineers turn raw test data into reliable modal parameters (frequency, damping, mode shapes) with high-precision algorithms, interactive 3D geometry modeling, real-time test monitoring, and rich visualization (FRF plots, waterfall, ODS animations).
| Faster modal results | Go from raw time data → FRF (H1/H2/H3/H4) → modal parameters (frequency/damping/mode shapes) in one workflow. |
|---|---|
| Higher identification accuracy | Use LSCE / STLSCE and stabilization diagrams to cross-check poles and improve damping ratio estimation. |
| Less rework during testing | Monitor signals and test progress in real time, then adjust sampling, averaging, and setup before re-running tests. |
| Clearer engineering communication | Visualize results with FRF curves, spectra, waterfall plots, and 3D mode/ODS animations so non-experts can understand quickly. |
| More flexible data handling | Import/export UFF, TXT, and Excel to connect with DAQ systems and downstream analysis/reporting needs. |
| Cleaner, repeatable comparisons | Control window functions (Rectangular, Hanning, Hamming, Blackman, Welch, Kaiser), averaging methods, and frequency settings for consistent results. |
| Faster delivery to customers | Auto-generate DOC reports with customizable templates to reduce manual formatting time. |
Product line: HP-MTAS Series
Product type: Modal testing & analysis software
Core modules:

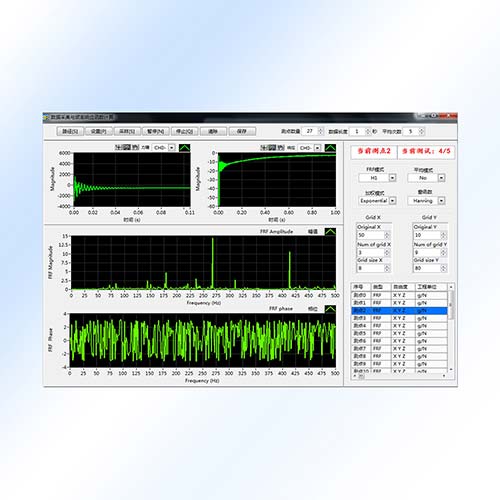

Dynamic signal testing & FRF estimation
Interactive geometry modeling (3D)
Modal/ODS analysis, identification, and reporting
Reporting: Auto-generated DOC reports (templates customizable)
HP-MTAS supports the full workflow from test preparation to result delivery:
Signal preparation (remove drift, data extraction, digital filtering)
Analysis configuration (sampling points, averaging method & cycles)
Windowing options (Rectangular, Hanning, Hamming, Blackman, Welch, Kaiser)
FRF estimation methods (H1 / H2 / H3 / H4)
Modal identification using methods such as LSCE, STLSCE, and stabilization diagrams
Operational analysis features including ODS (time-domain & frequency-domain) and working modal parameter identification tools
3D mode shape visualization and exportable results
Modal testing for structures, machines, frames, housings, assemblies
Vibration troubleshooting (resonance, excessive noise/vibration, fatigue risk)
Design validation and correlation with simulation/FEA results
Operational Deflection Shape (ODS) analysis for rotating machinery, equipment, and installed structures
Industry use cases (typical): automotive & rail, aerospace, industrial machinery, electronics/fixtures, civil/structural components
(Software-side support based on the provided product info)
Test data types:
Time-domain test data input
Frequency-domain test data input
General modal data acquisition support (works with commonly used modal test data streams)
Channel ↔ model mapping: channel-to-geometry data transfer and measurement point matching
Import/Export formats: UFF, TXT, Excel (import & export for signal processing / modal analysis)
Signal preprocessing
Zero-drift removal
Data extraction
Digital filtering
Analysis settings
Sampling points configuration
Averaging method & averaging times
Window functions
Rectangular, Hanning, Hamming, Blackman, Welch, Kaiser
FRF estimation
H1 / H2 / H3 / H4 estimators
Geometry & 3D modeling
Coordinate input: Cartesian, cylindrical, etc.
Local coordinate systems (multiple definition methods) + conversion with global coordinates
Build points/lines/surfaces from measurement coordinates; standard shapes: rectangle, circle, cylinder
Import coordinate documents from third-party 3D design software
Interactive edit: select/move/rotate/zoom/delete/modify nodes, lines, polygons, 3D objects
Highlight measurement points; mouse drag for zoom/rotate/pan

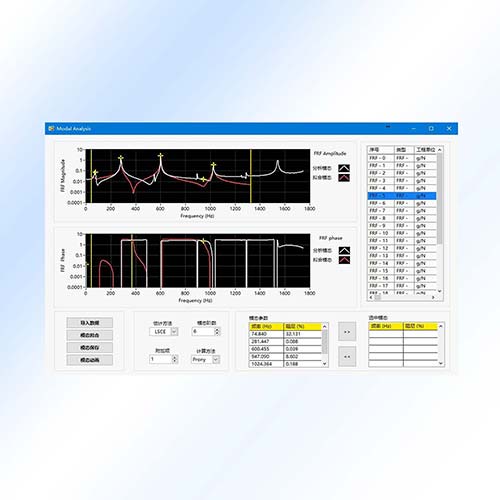

Modal identification & analysis
Frequency response modal identification: LSCE, STLSCE, stabilization diagrams (time & frequency domain), higher-accuracy damping ratio estimation
Working/operational modal identification: stabilization diagrams, cross-spectrum and related methods
Auto identification of modal frequency & damping (frequency-domain)
Global FRF (SUM) and modal indicator functions (MIF, etc.) for pole selection

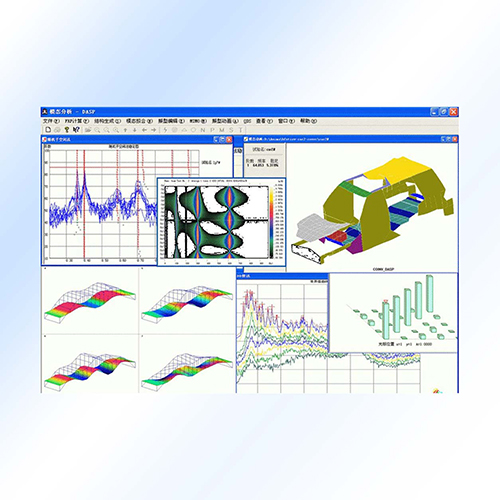

Visualization
3D mode shape display + data output
ODS in time-domain and frequency-domain with manual/auto playback parameter settings
Reporting
Automatic DOC report generation; customizable templates
1) What is HP-MTAS used for?
HP-MTAS is used for modal testing and analysis to identify natural frequencies, damping, and mode shapes, and to visualize ODS/mode shapes to diagnose vibration issues and validate designs.
2) Which FRF estimators are supported?
It supports H1, H2, H3, and H4 FRF estimation methods, giving flexibility for different noise and measurement conditions.
3) What window functions can I choose?
Common window functions are included: Rectangular, Hanning, Hamming, Blackman, Welch, and Kaiser.
4) Can I build a 3D geometry model inside the software?
Yes. HP-MTAS provides interactive geometry modeling with coordinate input (Cartesian/cylindrical), local coordinate systems, standard shapes, and interactive editing (move/rotate/zoom/delete).
5) Does it support importing/exporting data?
Yes. It supports UFF, TXT, and Excel formats for data import/export and further signal processing or reporting workflows.
6) Does HP-MTAS support ODS analysis?
Yes. It supports time-domain ODS and frequency-domain ODS, including manual and automatic playback with customizable parameters.
7) How are modal parameters identified?
It supports multiple identification approaches such as LSCE, STLSCE, and stabilization diagrams, enabling reliable parameter estimation (including improved damping ratio estimation).
8) Can I generate reports automatically?
Yes. The software can auto-generate DOC reports, and you can customize the report templates.
