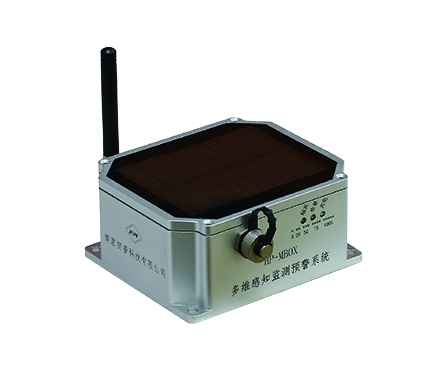

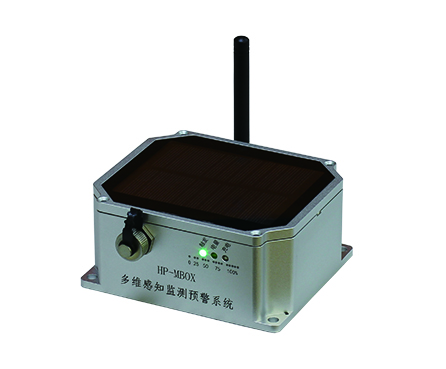

HP-MBOX is an all-in-one structural health monitoring (SHM) and early-warning device that integrates tilt, acceleration/vibration, displacement, and strain monitoring in a rugged IP67 enclosure. With solar + lithium power, threshold-triggered event capture, and NB-IoT/4G wireless upload, it delivers fast alarms and reliable long-term field monitoring for critical infrastructure.
| Solar + Lithium Power | reduces maintenance and supports long-term outdoor deployments |
|---|---|
| Threshold-Triggered Event Capture | records critical moments instead of only continuous streams |
| Millisecond-Level Alarm Response | faster warning for time-sensitive risk scenarios |
| Configurable Warning/Alarm/Reports | match site-specific safety limits and workflows |
| Hourly Feature Uploads | quick health snapshots (battery, tilt, acceleration, temperature, etc.) |
| On-Device SSD Storage | preserves event data even if the network is unstable |
| NB-IoT/4G Connectivity + OTA | remote access, updates, and scalable deployments |
| Rugged IP67 Housing | suitable for harsh construction and infrastructure environments |
All-in-one monitoring: tilt, acceleration/vibration/impact, displacement, strain (with external sensor access)
Fast early warning: built-in alert model supports threshold triggering and millisecond-level alarm response
Configurable alarms: user-set thresholds for warning/alarm + adjustable reporting rules
Flexible data strategy: selectable sampling rate, optional filtering settings, event data recorded for later analysis
Field-ready power: lithium battery + solar charging for long unattended operation
Visible status: LED indicators for operation status
Reliable storage: built-in large-capacity SSD storage so recorded data is retained even during communication interruptions
Cloud platform compatible: works with a companion cloud software platform for configuration, alarm/report settings, and data review
HP-MBOX combines multi-sensor measurement (tilt, acceleration, vibration, displacement, strain) with an embedded early-warning model. When monitored parameters reach the configured threshold, the device triggers alarms and simultaneously stores event data for follow-up analysis. Users can also configure transmission frequency, measurement ranges (for acceleration), and filtering options via the supporting cloud software. Solar power and wireless communication enable deployments in remote or hard-to-access environments for long-term safety monitoring and condition assessment.
Bridge structural monitoring (vibration, tilt, settlement trending)
Foundation settlement / displacement tracking
High-slope stability and tilt monitoring
Tunnel deformation or collapse risk monitoring
Building safety monitoring and long-term early warning
Towers, tube/tower structures, and support structures condition monitoring and health diagnostics
Construction site risk monitoring where fast alarms and event records are required
Built-in sensing
Tilt (X/Y)
Acceleration / vibration / impact (X/Y/Z)
Temperature sensor (internal)
External sensor expansion
Displacement sensors
Strain sensors
Voltage sensors
Current sensors
(External sensor types supported as per system configuration.)
Sampling & events
Optional sampling rate: 100 Hz / 200 Hz
Threshold-trigger sampling with 10 s total event record duration
Hourly feature value uploads (e.g., battery, XY tilt, XYZ acceleration, temperature)
| Item | Specification |
|---|---|
| Tilt axes | X, Y; ±90°; resolution 0.01° |
| Acceleration axes | X, Y, Z; ±2 g / ±4 g / ±8 g selectable; resolution 0.01 g |
| Temperature measurement | Built-in temp sensor; range -50°C to 100°C |
| External sensor access | Displacement / strain / voltage / current sensors |
| Sampling rate | 100 Hz or 200 Hz |
| Sampling mode | Threshold-triggered sampling; total event duration 10 s |
| Feature upload | Every hour (battery, XY tilt, XYZ acceleration, temperature, etc.) |
| Data storage | Built-in 32 GB SSD; triggered data retained |
| Built-in battery | 4 × 3.7 V 18650 Li cells; continuous operation up to 150 days (typical) |
| Solar charging | Built-in solar panel; charging current DC 100 mA / 5 V; supports continuous operation with adequate sunlight |
| Housing | CNC-machined integrated aluminum; anodized, corrosion-resistant |
| Operating temperature | -30°C to 70°C |
| Wireless transmission | NB-IoT / 4G; supports remote OTA |
| Dimensions | 123 × 78 × 55 mm |
| Weight | 500 g |
| Protection rating | IP67 |
1) What makes HP-MBOX suitable for remote monitoring?
Solar + lithium power, NB-IoT/4G wireless upload, rugged IP67 protection, and local SSD storage for data continuity.
2) How does the early-warning function work?
You set thresholds in the supporting platform. When the measured value reaches the set limit, the device triggers an alarm and stores event data for analysis.
3) Can I adjust sampling rate and filtering?
Yes. Sampling rate (100/200 Hz) and optional filtering settings can be configured to match your scenario.
4) Does the device store data if the network drops?
Yes. Triggered data is saved to the built-in SSD, so critical event records remain available.
5) What sensors are built in, and what can be added externally?
Built-in: tilt (X/Y), acceleration (X/Y/Z), temperature. External: displacement, strain, voltage, current (based on configuration).
6) Is remote maintenance supported?
Yes. NB-IoT/4G supports remote connectivity and OTA capability (where enabled).
