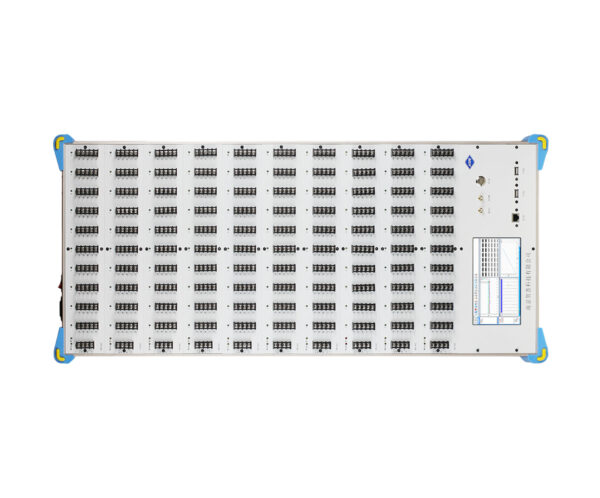

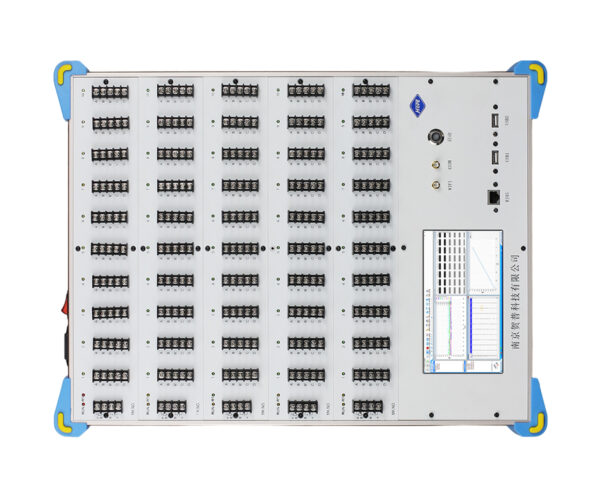

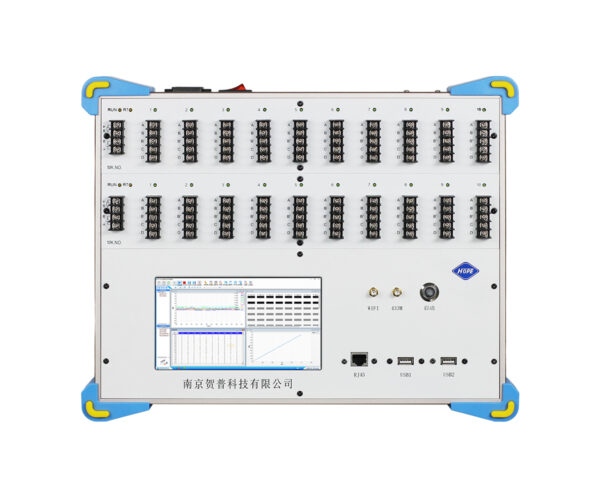

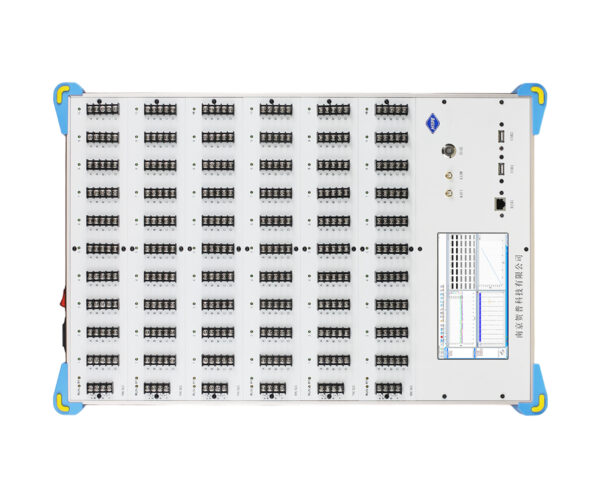

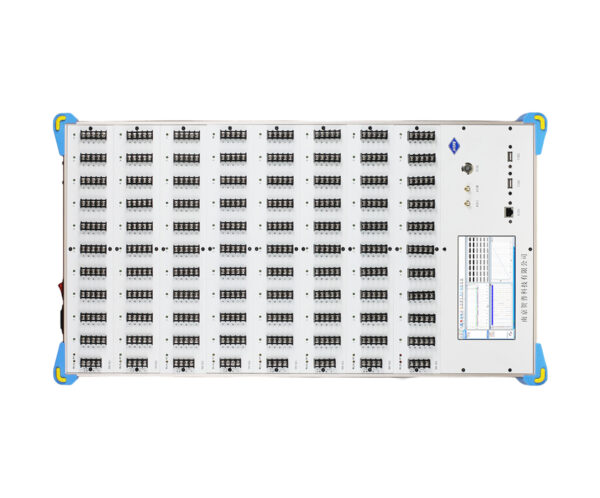

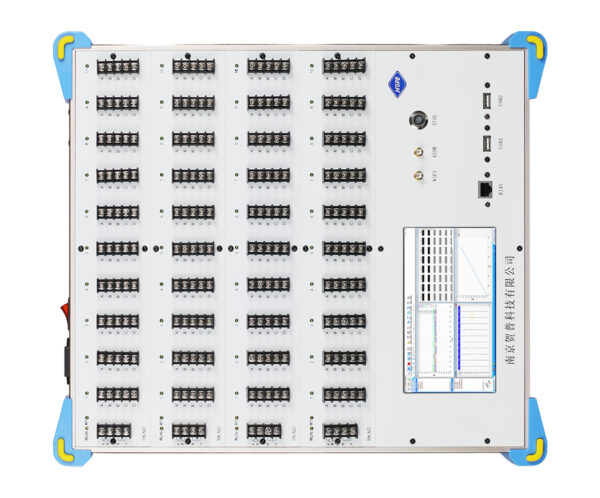

HP-JYS is a 2 Hz synchronized, multi-channel data acquisition system designed for static stress/strain testing and slow-changing signals. It combines embedded Win10 operation, bridge measurement for strain gauges, and modular expansion for multi-point tests.
| Embedded Win10 + 7" touch screen | Standalone operation or PC connection via USB communication module; easy deployment. |
|---|---|
| Universal multi-sensor input | Supports multiple sensor types (strain, current, voltage, temperature, resistance, displacement, etc.) for flexible test setups. |
| High-accuracy architecture | Independent high-precision 120 Ω bridge resistor per channel, stable conditioning/amplification circuitry, and high-performance ADC for reliable static measurements. |
| 2 Hz synchronized sampling | Keeps channel data comparable for static stress/strain tests and slow-varying signals. |
| Optional battery power | Optional built-in lithium battery for field tests when AC 220V is inconvenient. |

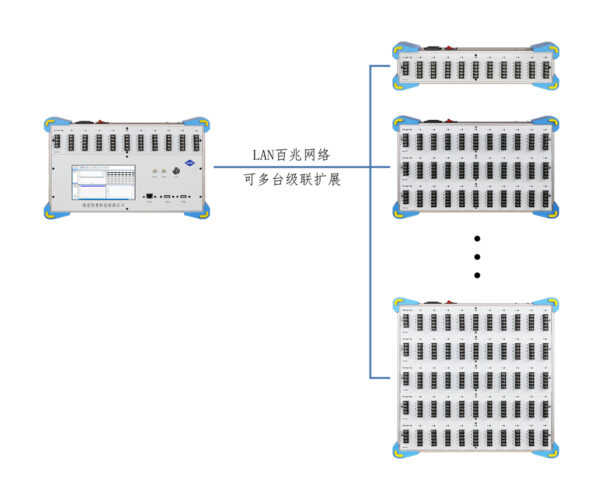

| Portable modular design | Lightweight, modular expansion; customize measurement points and build scalable multi-channel acquisition networks. |
Static strain/stress tests for beams, frames, joints, plates, and structural components
Long-duration strain monitoring for civil engineering and structural health projects
Lab verification requiring stable, synchronized low-speed sampling
Field testing and multi-point monitoring with optional battery power and modular networking
Strain (Bridge): Full bridge / half bridge / quarter bridge
1/4 bridge (2-wire), 1/4 bridge (3-wire), 1/4 bridge compensation wiring
Voltage: ±20 mV to ±2 V
Other: Strain-type sensors (and multi-sensor input options depending on configuration)
| Parameter | Specification |
|---|---|
| Measurement points | 10–100 channels |
| Sampling rate | 2 Hz per channel (serial) |
| Sampling modes | Single sampling, multiple sampling, continuous sampling, timed sampling, fixed-point sampling |
| Measurement types | Strain: ±5000 to ±1,000,000 με; Voltage: ±20 mV to ±2 V; Others: strain-type sensors |
| Bridge configurations | Full bridge, half bridge, 1/4 bridge (2-wire), 1/4 bridge (3-wire), 1/4 bridge compensation bridge |
| Excitation | Bridge voltage 2 V |
| System accuracy | 0.5% ± 3 bytes |
| Stability (4 hours) | ±1 byte/hour; ±1 byte/°C |
| Resolution | 1 byte |
| Embedded system | 7-inch capacitive touch screen |
| Data storage | Optional 32 GB SSD |
| Communication interfaces | Optional USB / Ethernet / RS485 |
| Power supply | AC 220V/50Hz, DC 12V, or optional built-in lithium battery |
| Operating environment | Temperature: -20 to 60°C; Humidity: 10–95% RH |
Q1: Is 2 Hz sampling enough for strain testing?
For static tests and slow-changing strain signals, 2 Hz synchronized sampling is commonly used to keep data stable and comparable across channels.
Q2: What bridge wiring does HP-JYS support?
It supports full bridge, half bridge, and quarter bridge, including 2-wire/3-wire quarter bridge and compensation wiring.
Q3: Can I use HP-JYS in the field without AC power?
Yes. The system supports DC 12V, and an optional built-in lithium battery is available for on-site testing.
Q4: How many channels can I build?
HP-JYS supports 10–100 channels (depending on configuration) and can be networked for multi-point measurement projects.
