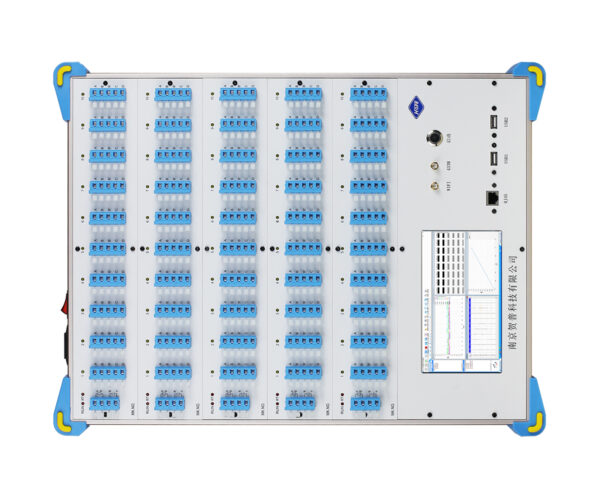

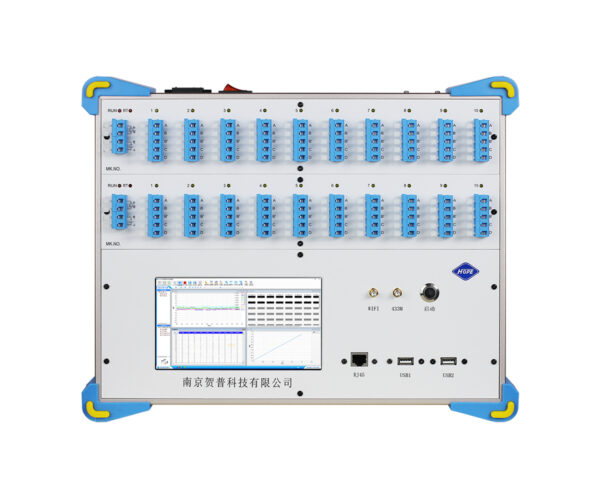

HP-JCS is a standalone Windows 10 touchscreen DAQ with 10 Hz synchronized multi-channel logging for strain gauges, 4–20 mA, voltage, RTD/thermocouple temperature, resistance, and displacement sensors.
| Built-in Windows 10 system | Integrated Win10 with a 7-inch touch screen. Can also work with a PC via an USB communication module. Plug-and-play, convenient and reliable. |
|---|---|
| Multi-sensor universal input | Supports strain, current, voltage, temperature, resistance, displacement and other sensor types simultaneously. No extra accessories needed—true universal input. |
| High accuracy | Each channel includes an independent high-precision 120 Ω bridge resistor, stable signal conditioning/amplifier circuit, and high-performance ADC. Accuracy up to 0.2%. Fast sampling with 10 Hz synchronization across all channels. |
| Optional battery power | Optional built-in lithium battery for field use to avoid AC 220V power constraints. |

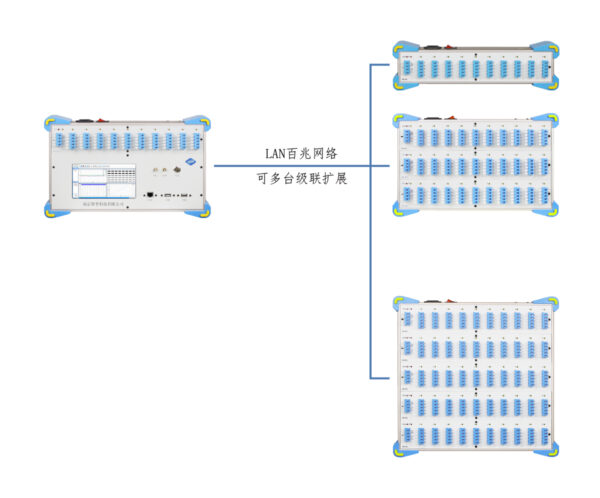

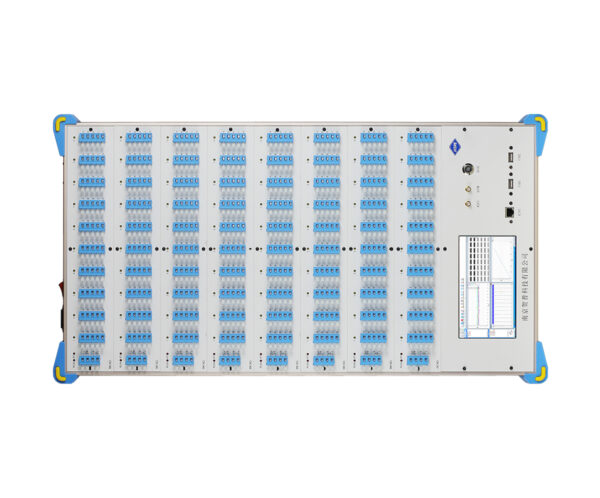

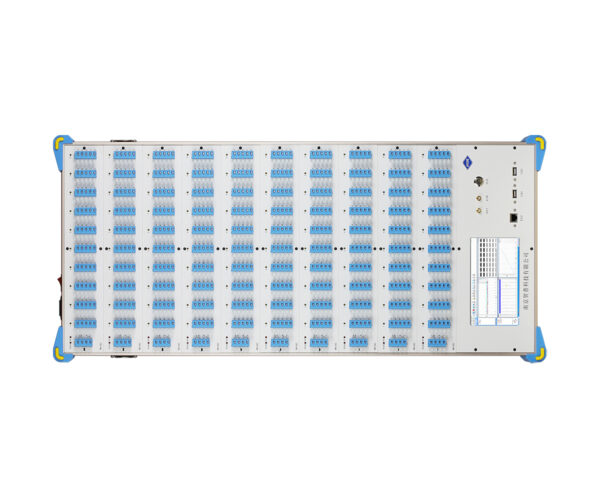

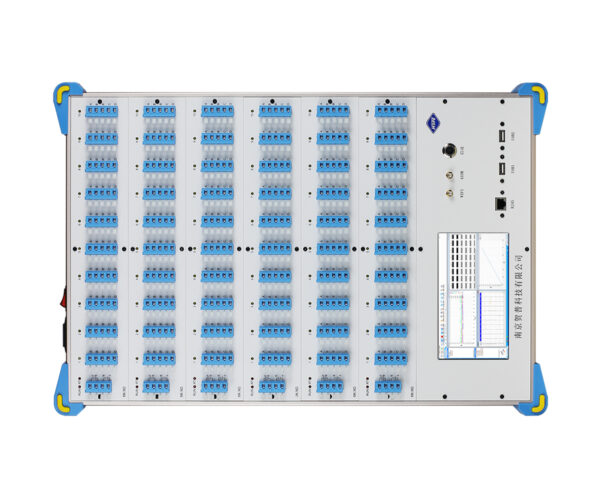

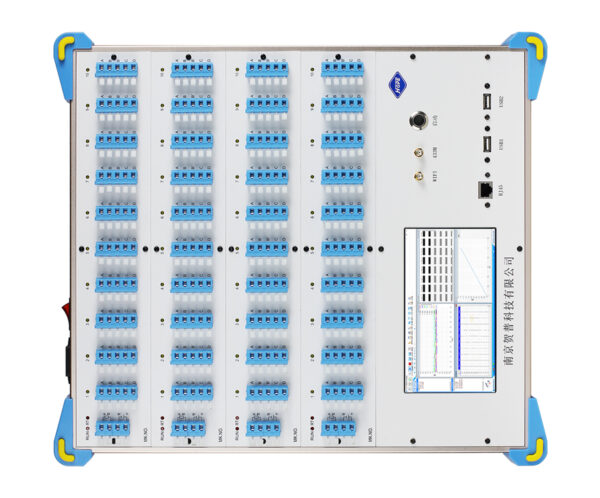

| Portable & modular | Lightweight modular design, easy to carry and network multiple units. Customizable measurement points for scalable multi-channel acquisition systems. |
HP-JCS is a standalone 10 Hz synchronized DAQ system built for static signal measurement and long-term monitoring. With a built-in Windows 10 system and 7-inch touchscreen, it can run independently or connect to a PC via USB communication. It supports strain gauge bridge inputs, voltage (±20 mV to ±2.5 V), current (0–20 mA / 4–20 mA), RTD/thermocouple temperature, resistance, and displacement sensors—ideal for lab and field testing where on-site operation and quick deployment matter.
Strain gauge data acquisition for structural components, frames, beams, and joints
Static load testing and fatigue test support (10 Hz synchronized logging)
Bridge/Building monitoring (strain + temperature + displacement multi-sensor monitoring)
Geotechnical monitoring (displacement sensors, RTD, 4–20 mA transmitters)
Industrial process & equipment monitoring (RS485/Ethernet DAQ integration)
Field testing requiring an all-in-one touchscreen data logger
Strain: full/half/quarter bridge, 120Ω bridge support, multiple wiring methods
Current: 0–20 mA and 4–20 mA data acquisition
Voltage: ±20 mV to ±2.5 V
Temperature: RTD, thermocouple, thermistor
Displacement: resistive / inductive / laser displacement sensors
Transmitter outputs: voltage/current/resistance output transmitters
| Parameter | Specification |
|---|---|
| Measurement points | 10 channels/module; up to 100 channels per unit; scalable with multiple units; expandable to 10,000+ channels |
| Sampling rate | 10 Hz per channel (parallel) |
| Sampling modes | Single sampling, multiple sampling, continuous sampling, timed sampling, fixed-point sampling |
| Measurement types | Strain: ±5000 to ±1,000,000 με | Voltage: ±20 mV to ±2.5 V | Current: 0–20 mA, 4–20 mA | Temperature: RTD, thermocouple, thermistor | Displacement: strain-type, resistive, inductive, laser displacement sensors | Others: transmitter outputs such as voltage/current/resistance |
| Bridge configurations | Full bridge, half bridge, 1/4 bridge (2-wire), 1/4 bridge (3-wire), 1/4 bridge compensation bridge |
| Excitation | Bridge voltage 2.5 V; sensor excitation 5 V / 12 V / 24 V (custom) |
| System accuracy | 0.2% ± 2 bytes |
| Stability (4 hours) | ±1 byte/hour; ±1 byte/°C |
| Resolution | 0.1 byte |
| Built-in system | Windows 10, 32 GB SSD, 7-inch capacitive touch screen |
| Data storage | Optional 64 GB SSD |
| Communication interfaces | Optional USB / Ethernet / RS485 |
| Power supply | AC 220V/50Hz, DC 12V, or optional built-in lithium battery |
| Operating environment | Temperature -20 to 60°C; Humidity 10–95% RH |
Q1: Why choose HP-JCS instead of a PC-based DAQ?
HP-JCS includes Windows 10 + a touchscreen, so it can work as a standalone DAQ/data logger on site—faster deployment, fewer cables, and easier operation in field environments.
Q2: Is 10 Hz enough for strain testing?
For static testing and slow-changing signals, 10 Hz synchronized sampling is commonly used to ensure stable, low-noise data and consistent comparison across channels.
Q3: Can I mix strain + temperature + displacement in one test?
Yes. HP-JCS supports mixed sensor inputs, making it suitable for multi-parameter monitoring.
Q4: Does it support 4–20 mA sensors?
Yes, it supports 0–20 mA and 4–20 mA acquisition, plus voltage and resistance transmitter outputs.
