HP-JC is a 10 Hz synchronized, multi-channel static DAQ for reliable measurement of strain, voltage, current (0–20 mA / 4–20 mA), temperature (RTD/thermocouple), resistance, and displacement in lab and field monitoring.
| Multi-purpose universal input | Supports multiple connection types. Can simultaneously connect strain, current, voltage, temperature, resistance, displacement and other sensors. No extra auxiliary equipment needed—true universal input. |
|---|---|
| High accuracy | Each channel includes an independent high-precision 120 Ω bridge resistor, stable signal conditioning/amplifier circuit, and high-performance ADC. Accuracy up to 0.2% with fast sampling; all channels are synchronized at 10 Hz. |
| Battery-powered option | Optional built-in lithium battery to avoid AC 220V power limitations on site. |
| Portable & modular | Modular, lightweight design for easy carrying and multi-unit networking. Customizable measurement points to build multi-channel acquisition systems. |
HP-JC is a 10 Hz synchronized DAQ (data acquisition system) designed for static signal measurement and monitoring. It supports strain gauge bridge inputs, voltage (±20 mV to ±2.5 V), current (0–20 mA / 4–20 mA), RTD/thermocouple temperature, resistance, and displacement sensors—ideal for structural testing, load testing, long-term monitoring, and lab/field measurement.
Strain gauge data acquisition for structural components, frames, beams, and joints
Static load testing and fatigue test support (10 Hz synchronized logging)
Bridge/Building monitoring (strain + temperature + displacement multi-sensor monitoring)
Geotechnical monitoring (displacement sensors, RTD, 4–20 mA transmitters)
Industrial process & equipment monitoring (RS485/Ethernet DAQ integration)
Strain: full/half/quarter bridge, 120Ω bridge support, multiple wiring methods
Current: 0–20 mA and 4–20 mA data acquisition
Temperature: RTD, thermocouple, thermistor
Displacement: resistive/inductive/laser displacement sensors
Transmitter outputs: voltage/current/resistance output transmitters
| Parameter | Specification |
|---|---|

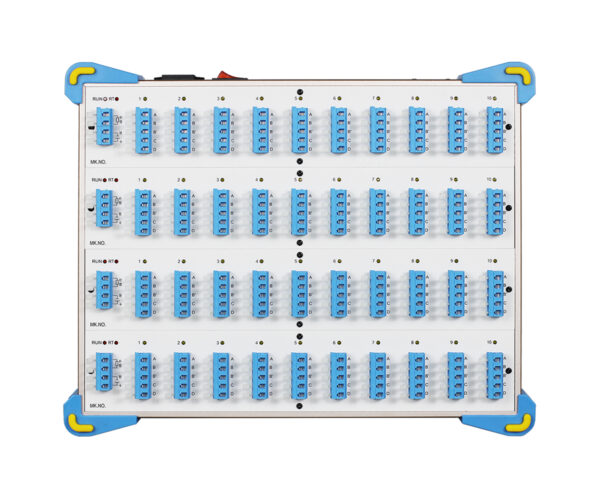

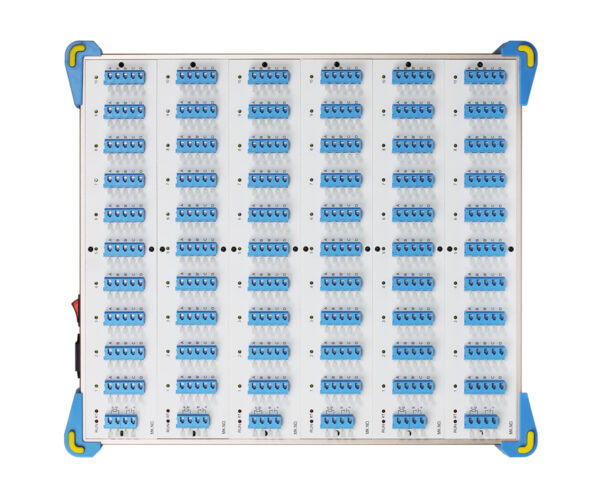

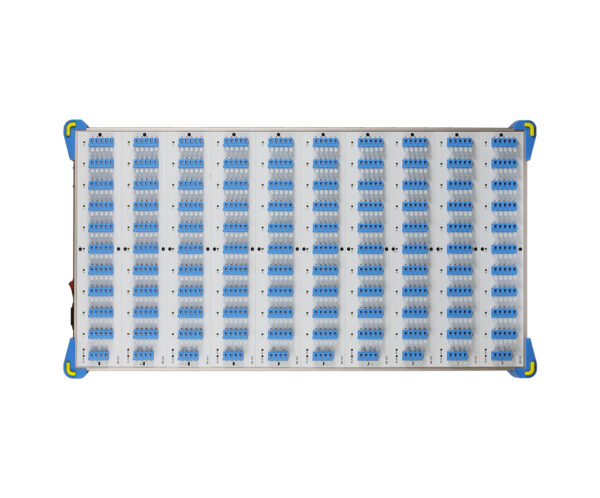

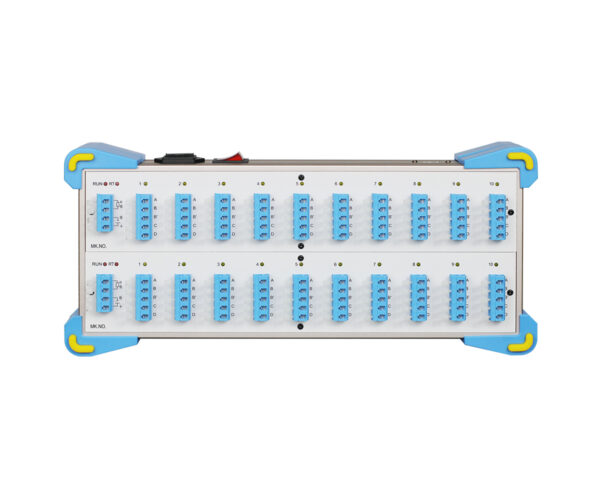

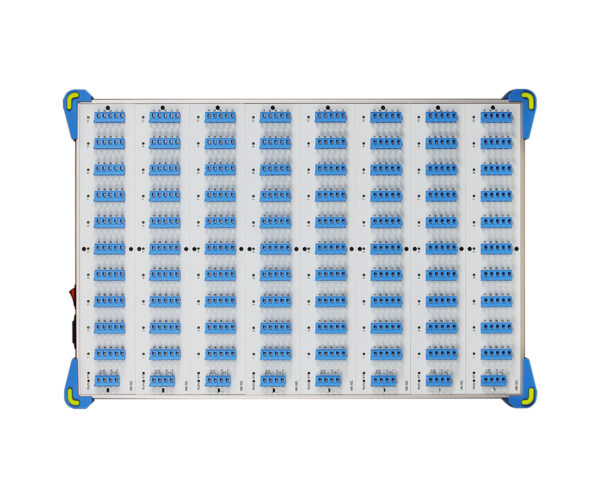

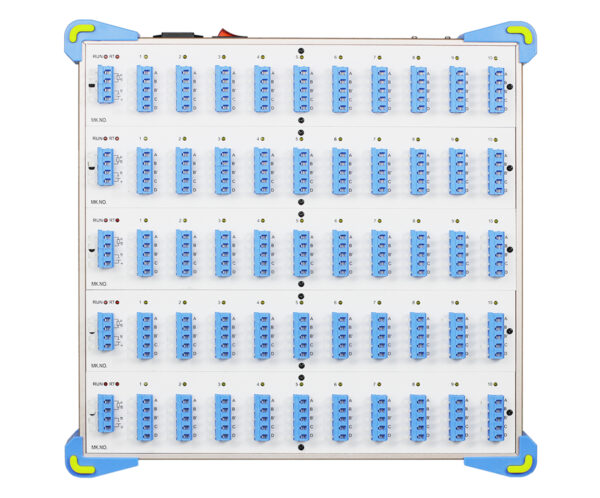

| Measurement points | 10 channels/module; up to 100 channels per unit; scalable with multiple units; expandable to 10,000+ channels |
| Sampling rate | 10 Hz per channel (parallel) |
| Sampling modes | Single sampling, multiple sampling, continuous sampling, timed sampling, fixed-point sampling |
| Measurement types | Strain: ±5000 to ±1,000,000 με | Voltage: ±20 mV to ±2.5 V | Current: 0–20 mA, 4–20 mA | Temperature: RTD, thermocouple, thermistor | Displacement: strain-type, resistive, inductive, laser displacement sensors | Others: transmitter outputs such as voltage/current/resistance |
| Bridge configurations | Full bridge, half bridge, 1/4 bridge (2-wire), 1/4 bridge (3-wire), 1/4 bridge compensation bridge |
| Excitation | Bridge voltage 2.5 V; sensor excitation 5 V / 12 V / 24 V (custom) |
| System accuracy | 0.2% ± 2 bytes |
| Stability (4 hours) | ±1 byte/hour; ±1 byte/°C |
| Resolution | 0.1 byte |
| Embedded system | Embedded system |
| Data storage | Optional 64 GB SSD |
| Communication interfaces | Optional USB / Ethernet / RS485 |
| Power supply | AC 220V/50Hz, DC 12V, or optional built-in lithium battery |
| Operating environment | Temperature -20 to 60°C; Humidity 10–95% RH |
Q1: Is 10 Hz enough for strain testing?
For static testing and slow-changing signals, 10 Hz synchronized sampling is commonly used to ensure stable, low-noise data and consistent comparison across channels.
Q2: Can I mix strain + temperature + displacement in one test?
Yes. HP-JC supports mixed sensor inputs, making it suitable for multi-parameter monitoring.
Q3: Does it support 4–20 mA sensors?
Yes, it supports 0–20 mA and 4–20 mA acquisition, plus voltage and resistance transmitter outputs.
