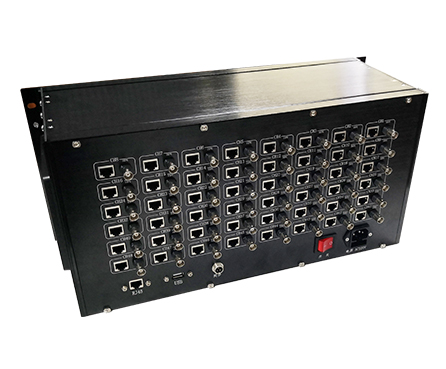

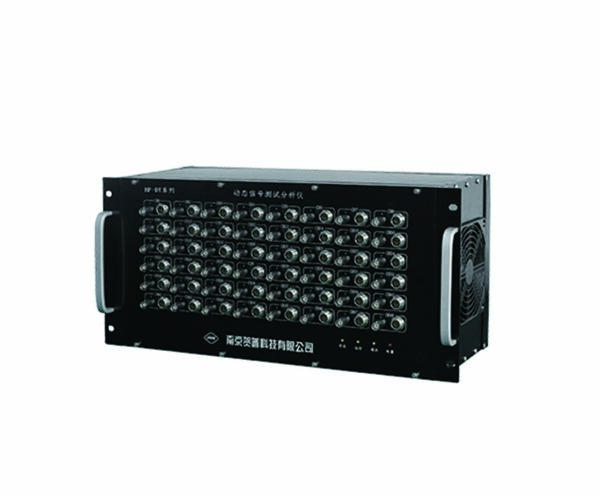

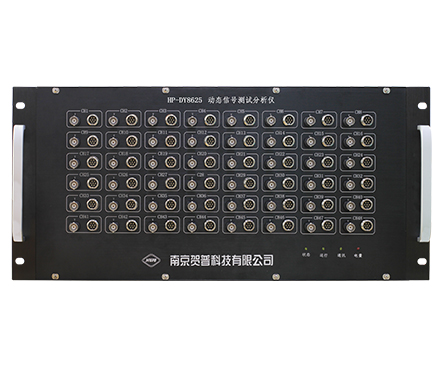

HP-DY is a 24-bit high-speed, multi-channel DAQ and analysis system with synchronous parallel sampling up to 256 kHz, mixed inputs (AC/DC/IEPE/strain), and a 19-inch rackmount form factor for test benches and integrated measurement racks.
| Hybrid inputs per channel | Configure each channel for DC, AC, IEPE, or strain-gauge input types—true universal input without extra auxiliary modules. |
|---|---|
| Per-channel hardware auto-balance | Independent 16-bit D/A per channel enables full-range auto-balance (zero) without losing measurement range; supports manual zero point setting based on test needs. |
| High-speed synchronized sampling | High-stability conditioning + 24-bit high-performance ADC. All channels support synchronous parallel sampling, display, and storage, up to 256 kHz maximum. |
| High accuracy & strong anti-interference | Built-in independent 120 Ω bridge resistor per channel, stable amplification/conditioning, and high-performance ADC for 0.2% test accuracy. |
| Excitation & IEPE power built-in | Per-channel 0–10 V / 400 mA excitation (software configurable, 0.1% accuracy), plus rear excitation supplies +24 V / +12 V, and IEPE 4 mA constant-current source with conditioning. |
HP-DY is engineered for dynamic testing where you need stable conditioning, synchronized acquisition, and scalable channel counts. It supports common dynamic and industrial signals—strain, vibration/acceleration (IEPE), voltage/current loops, temperature, pressure, and displacement—while offering adjustable excitation supplies and fast hardware auto-balance for efficient setup.
Multi-channel vibration/acceleration testing (IEPE)
Dynamic strain testing and durability experiments (synchronized multi-channel)
Industrial mixed-signal acquisition: voltage/current/temperature + dynamic sensors

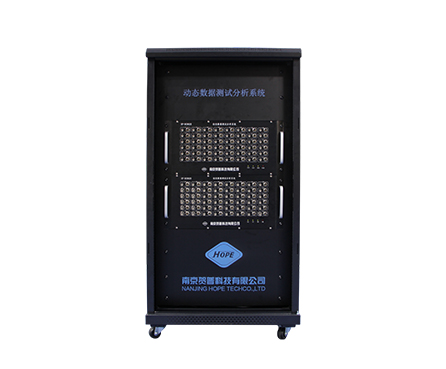

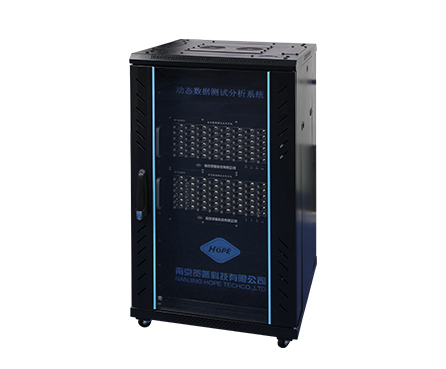

Test racks requiring rackmount DAQ integration and synchronized triggering
Strain (Bridge): Full bridge, half bridge, 1/4 bridge (2-wire), 1/4 bridge (3-wire), 1/4 bridge compensation
Acceleration / Velocity: magnetic, resistive, capacitive, IEPE types
Voltage: ±5 mV to ±10 V
Current: ±20 mA, 0–20 mA, 4–20 mA
Temperature (Thermocouple): 0–1500°C
Pressure: load cell pressure sensors, weighing sensors
Displacement: strain-type, resistive, inductive, LVDT, eddy-current, laser displacement sensors
Strain-type transducers: force, pressure, torque, displacement strain-type sensors
| Parameter | Specification |
|---|---|
| Channels / measurement points | 8–64 channels per unit, all channels synchronous acquisition |
| Sampling rate | 1 Hz–256 kHz continuous sampling, 1 Hz step, software configurable; all channels synchronous parallel sampling |
| ADC resolution | 24-bit |
| Excitation supply | Per channel 0–10 V / 400 mA, software configurable, accuracy 0.1% |
| Rear excitation | +24 V, +12 V |
| IEPE power | Built-in IEPE 4 mA constant-current source + conditioning circuit |
| Trigger modes | Free trigger, internal trigger, external trigger |
| Measurement accuracy | 0.2% |
| Hardware auto-balance | Full-range independent D/A auto-balance; all channels balanced within 5 seconds |
| Communication interfaces | USB, Ethernet |
| Chassis size | 19-inch standard rack size, rack-mountable |
Q1: What is HP-DY best for compared with portable DAQ systems?
HP-DY is optimized for rack integration, synchronized high-speed dynamic acquisition, and stable multi-channel testing on benches and measurement racks.
Q2: Does HP-DY support IEPE sensors and excitation outputs?
Yes. It provides an IEPE 4 mA constant-current source with conditioning, plus per-channel 0–10 V/400 mA excitation and rear +24V/+12V supplies.
Q3: How fast is the auto-balance (zero) process?
The hardware auto-balance supports full-range balancing and can complete all-channel balance within 5 seconds, improving setup efficiency.
