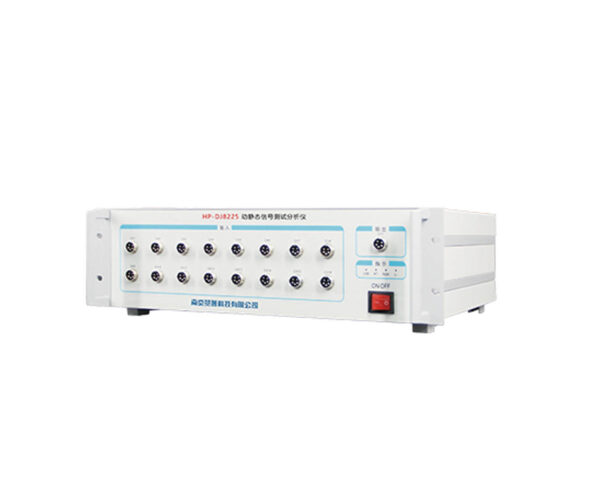

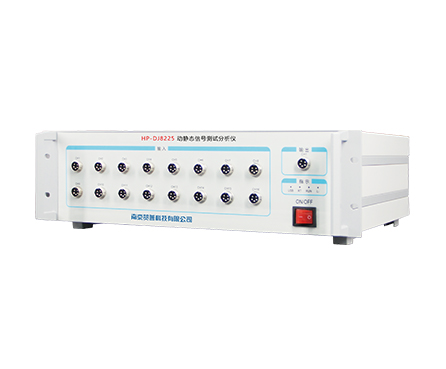

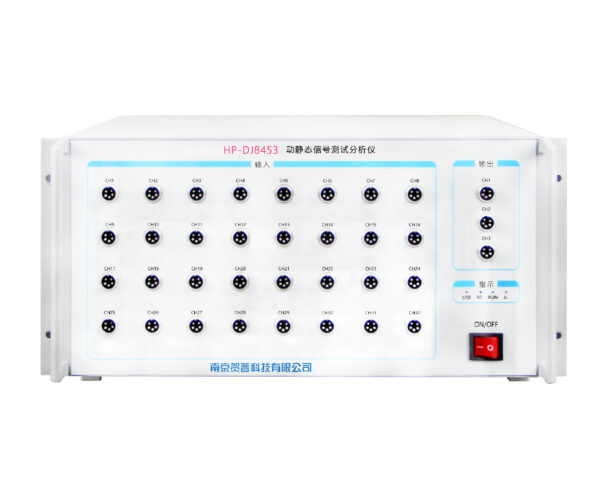

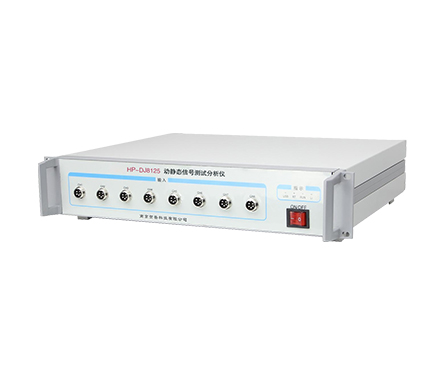

HP-DJ is a multi-channel DAQ and analysis system for both static and dynamic measurements, offering synchronous sampling up to 5 kHz, flexible mixed inputs (DC/AC/strain), and high-accuracy signal conditioning for field and lab testing.
| Hybrid inputs per channel | Each channel can freely select DC, AC, and strain-gauge measurement types—no extra auxiliary equipment for true universal input. |
|---|---|
| Auto balancing / zeroing | Independent 16-bit DAC per channel enables full-range hardware auto-balance (zero). You can also set any balance point and manually set the zero point to meet test requirements without losing measurement range. |
| Synchronous parallel acquisition | High-stability conditioning + high-performance ADC; all channels sample, display, and save synchronously, up to 5 kHz maximum. |
| High accuracy & strong anti-interference | Each channel includes an independent high-precision 120 Ω bridge resistor, stable amplification/conditioning, and high-performance ADC for up to 0.2% test accuracy. |
| Adjustable excitation supply | 0–10 V / 400 mA adjustable excitation, software configurable per channel, 0.1% accuracy. |
HP-DJ is designed for test scenarios where you need mixed-signal acquisition (strain + voltage + current + temperature + displacement) with synchronized sampling and stable conditioning. Each channel can be configured independently, minimizing extra external modules and simplifying system setup.
Multi-point strain testing (static + low-to-mid speed dynamic)
Mixed-sensor tests in R&D labs (strain + voltage + current + temperature)
Industrial measurement tasks with synchronized sampling requirements
Test benches requiring external/internal sync triggering
Strain (Bridge): Full bridge, half bridge, 1/4 bridge (2-wire), 1/4 bridge (3-wire), 1/4 bridge compensation
Voltage: ±5 mV to ±10 V (8 ranges)
Current: ±20 mA, 0–20 mA, 4–20 mA
Temperature: 0–1500°C (thermocouples); 0–300°C (PT100)
Displacement / Others: strain-type, resistive, and related sensor types
| Parameter | Specification |
|---|---|
| Channels / measurement points | 8–64 channels |
| Sampling rate | 1 Hz–5 kHz per channel, 1 Hz step, software configurable |
| Acquisition mode | All channels synchronous sampling |
| Measurement accuracy | ±0.2% |
| Stability (input shorted) | ±4 bytes / 4 hours; ±1 byte / °C |
| Excitation output | Per channel 0–10 V / 400 mA, software configurable, accuracy 0.1% |
| Sync trigger | 4-pin SYNC terminal; provides DC 5V / 0.1A isolated supply; supports high/low level, rising edge, falling edge recognition |
| Communication interfaces | USB, Ethernet |
| Power | AC 220V / 50Hz, 100W |
Q1: What is “static & dynamic” in HP-DJ’s use case?
HP-DJ is suitable for static signals and low-to-mid speed dynamic signals (up to 5 kHz), including synchronized multi-channel acquisition.
Q2: Can I measure strain and 4–20 mA at the same time?
Yes. HP-DJ supports mixed inputs—strain bridges, voltage, and current (including 4–20 mA) within the same system configuration.
Q3: How do I synchronize with other equipment?
HP-DJ provides a SYNC terminal supporting level/edge recognition and an isolated 5V supply for synchronized triggering.
