HP-DICT is a non-contact 3D full-field strain measurement system based on Digital Image Correlation (DIC). It captures deformation, displacement, and strain across an entire surface—supporting applications from material testing to civil engineering, biomedical research, and teaching visualization. 3D-DIC is widely recognized as a non-contact optical technique for full-field shape/displacement/deformation measurement.
| Non-contact full-field insight | Measure deformation across the whole surface—no strain gauges required. |
|---|---|
| Wide strain capability | Covers micro-strain to large deformation with 0.005%–2000% range. |
| High-speed testing ready | Up to 4500 fps for fast events and transient responses. |
| Flexible hardware configuration | Single/dual/multi-camera setups + IR coupling for different environments. |
| Deeper post-processing | 18 computed quantities + criteria like Mises/Tresca and geometric element analysis. |
| Better reporting efficiency | Export point clouds, plots, images, and videos in multiple formats. |
Non-contact 3D full-field measurement using DIC
Ultra-wide strain range: supports 0.005%–2000% strain
Flexible camera setups: single / dual / multi-camera; supports IR coupling
High-speed acquisition: up to 4500 fps
Real-time computation: displacement + strain + 18 physical quantities
Advanced analysis: principal strain, von Mises, Tresca, shear angle, etc.
Strong output & reporting: 3D point cloud + image/video export; multi-format output
Geometry & CAD comparison tools: point/line/surface elements; distance/angle tracking; CAD model comparison
HP-DICT is designed for “full-scene” measurement across a wide field of view. It supports both 2D/3D measurement modes, multiple camera interfaces (e.g., USB/GigE industrial cameras), and multiple triggering methods (auto/manual/signal sync). With calibration and speckle/marker workflows built in, HP-DICT helps improve measurement reliability and repeatability—whether you’re running lab tests or outdoor/field measurements.
Material mechanics (tensile, compression, bending, fatigue, impact)
Biomedical mechanics (soft tissue deformation studies)
Civil engineering (structural deformation monitoring, component testing)
Education & research visualization (full-field deformation demos)
Automation & control (visual feedback + deformation tracking workflows)

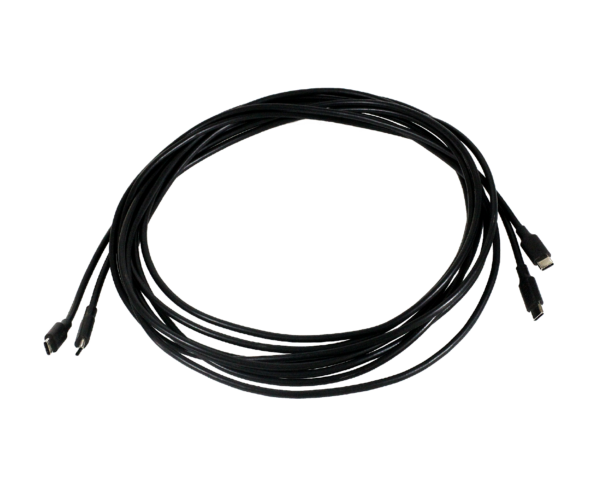

Camera input: mainstream industrial cameras (e.g., USB / GigE)

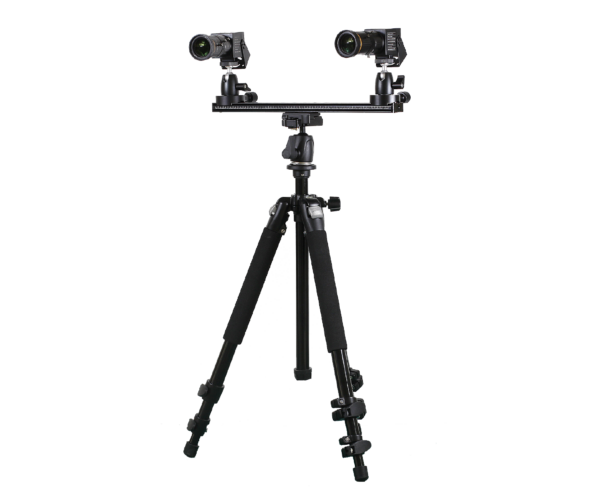

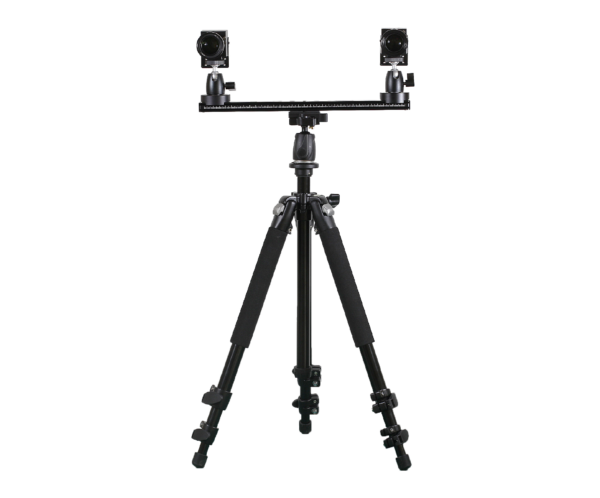

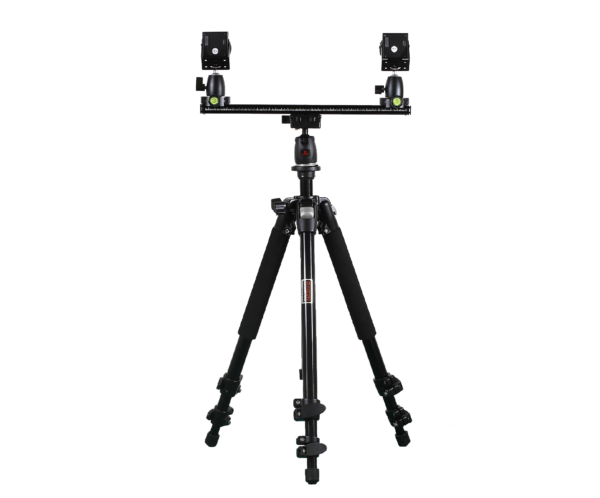

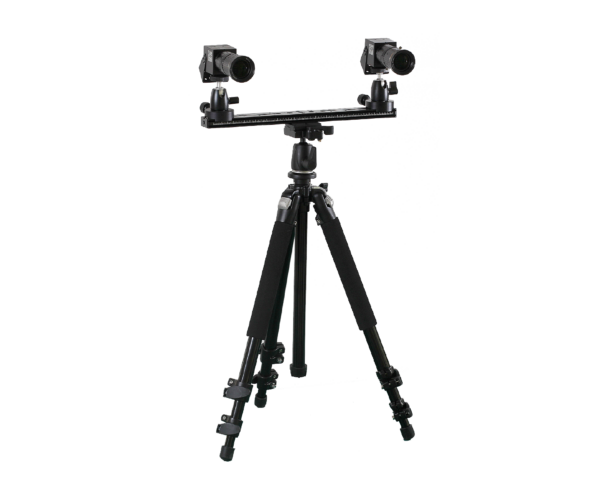

Configuration: 2D/3D, single / dual / multi-camera combinations
IR coupling: supported for specialized environments
Trigger modes: automatic / manual / external signal synchronization
Remote operation: supported

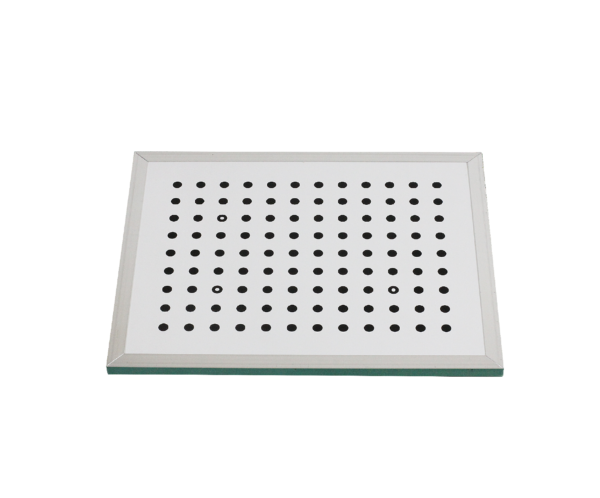

Surface preparation & targets: speckle patterns, marker points, and composite measurement workflows
Measurement principle: Digital Image Correlation (DIC), full-field optical measurement
Measurement type: 2D / 3D
Camera setup: single / dual / multi-camera, optional IR coupling
Strain measurement range: 0.005% – 2000%
Field of view (FOV): 1 mm – 20 m
Max acquisition speed: up to 4500 fps
Computed outputs: displacement, strain, and 18 physical quantities
Strain/criteria outputs: principal, von Mises, Tresca, shear angle, etc.
Data processing: interpolation fill, filtering/smoothing, trajectory & 3D visualization
Geometry analysis: point/line/surface elements; distance/angle dynamic measurement; CAD model comparison
Output: 3D point cloud + image/video export, multi-format output
1) What is a DIC system used for?
A DIC system measures full-field displacement and strain by tracking surface pattern changes between images, enabling non-contact deformation measurement.
2) Can HP-DICT handle both small strain and large deformation?
Yes. It supports 0.005% to 2000% strain measurement.
3) Can it be used for high-speed events (impact, rapid loading)?
Yes. The system supports acquisition up to 4500 fps (depending on the camera configuration).
4) Does it work for different test sizes and viewing ranges?
Yes. It supports a wide field of view from 1 mm to 20 m, and can be customized for objects from nano- to kilometer-scale measurement scenarios.
5) What camera configurations are supported?
It supports 2D/3D measurement with single / dual / multi-camera setups, plus optional IR coupling.
6) What outputs can I export for reports or publications?
You can export 3D point cloud/visualizations and image/video outputs in multiple formats, plus geometry-based measurements and CAD comparisons.
