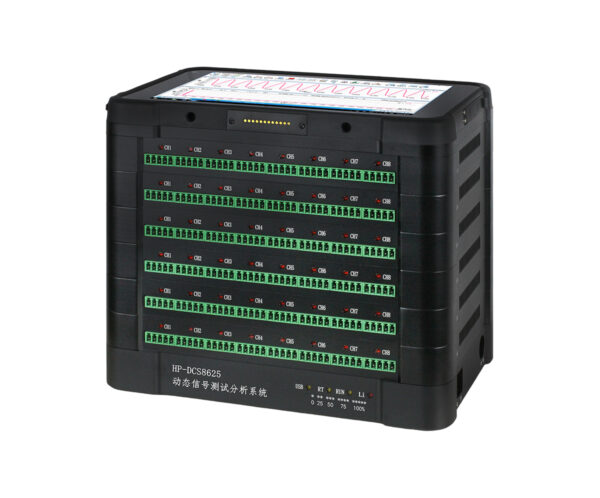

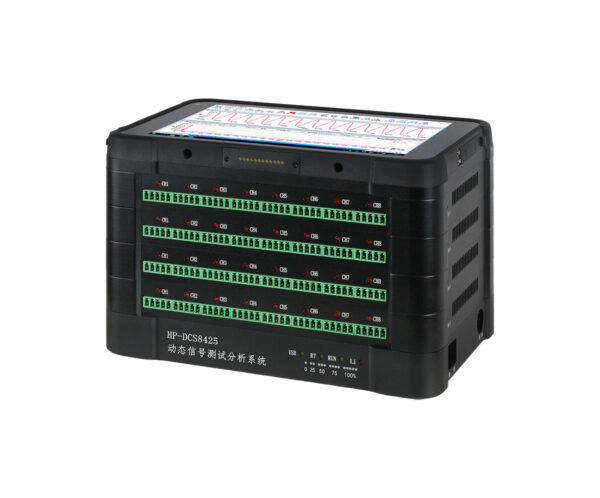

HP-DCS is a high-speed, multi-channel dynamic signal DAQ and analysis system featuring 24-bit ADC per channel, synchronous parallel sampling up to 256 kHz, and an embedded Win10 platform with an 8-inch capacitive touchscreen for on-site measurement, display, and storage.
| Hybrid inputs per channel | Each channel can be configured for DC, AC, IEPE, or strain-gauge bridge inputs—true universal input without extra auxiliary equipment. |
|---|---|
| Auto balancing (zero) per channel | Independent 16-bit DAC on every channel for full-range hardware auto-balance; software also supports manual zero adjustment. |
| High-speed synchronous sampling | 24-bit high-speed ADC per channel. All channels support synchronous parallel sampling, display, and saving, up to 256 kHz maximum sample rate. |
| High accuracy & stable conditioning | High-precision bridge circuit + stable amplification/conditioning + high-performance ADC for up to 0.2% test accuracy. |
| Built-in excitation & portable power | Built-in large-capacity lithium battery and multiple excitation options including 0–10 V, +24 V, ±12 V constant-voltage, and 24 V / 4 mA constant-current excitation. |
Designed for mixed-signal test scenarios, HP-DCS supports AC/DC/IEPE and strain-gauge bridge inputs with reliable conditioning and high-speed synchronized acquisition. With multi-channel expansion and flexible excitation options, it’s suitable for vibration, acceleration, strain, displacement, temperature, and industrial current/voltage loop measurements—especially where synchronization and dynamic bandwidth are required.
Vibration/acceleration/velocity testing (including IEPE sensors)
High-speed multi-channel strain testing with synchronized sampling
Mixed measurement setups: strain + voltage + current + temperature + displacement
On-site dynamic data capture with Win10 touchscreen operation and local storage
Strain: ±3000 to ±100000 με
Voltage (AC/DC): ±5 mV to ±10 V
Current: ±20 mA, 0–20 mA, 4–20 mA
Temperature: RTD, thermocouple, thermal resistance
Displacement: strain-type, resistive, capacitive, inductive, eddy-current, laser displacement sensors
Acceleration / Velocity: magnetic, capacitive, IEPE, charge-type sensors
Other sensors: resistance, frequency, etc.
| Parameter | Specification |
|---|---|

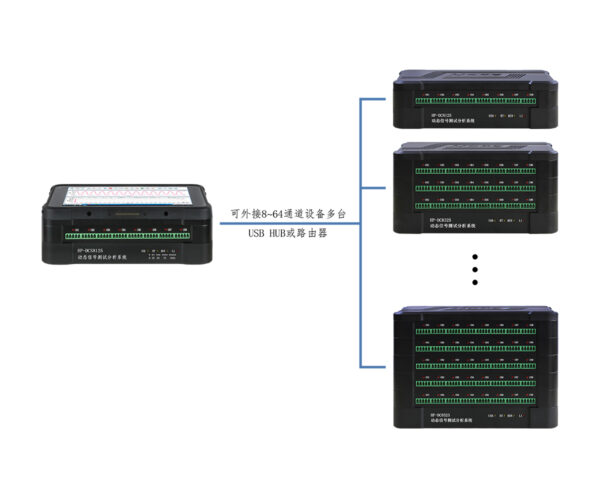

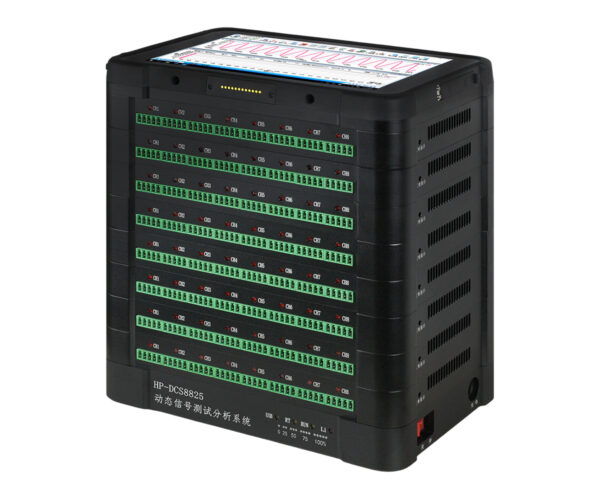

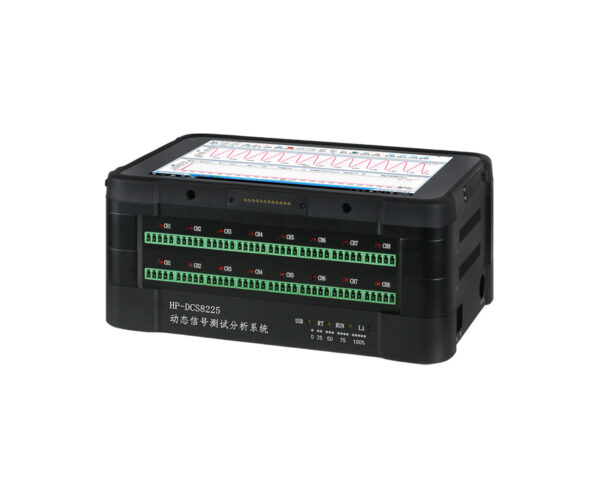

| Channels / measurement points | 8–64 channels per unit, expandable with multiple units |
| Sampling rate | 1 Hz–256 kHz per channel, all channels synchronous parallel sampling |
| ADC resolution | 24-bit |
| Bridge configurations | Full bridge, half bridge, 1/4 bridge (2-wire), 1/4 bridge (3-wire), 1/4 bridge compensation, etc. |
| Excitation (front) | 0–10 V / 240 mA, accuracy 0.1% |
| IEPE support (rear) | Built-in IEPE sensor 4 mA constant-current source + conditioning circuit |
| Trigger modes | Free trigger, internal trigger, external trigger |
| System accuracy | 0.2% ± 2 bytes |
| Auto balancing | Per channel independent 16-bit DAC full-range hardware auto-balance; software manual zero setting |
| Embedded system | 8″ capacitive touchscreen + Windows 10; 32–256 GB SSD optional |
| Communication interfaces | USB, Ethernet |
| Power supply | AC 220V/50Hz, DC 12V, built-in lithium battery |
Q1: What is the key difference between HP-DCS and typical DAQ modules?
HP-DCS integrates Win10 + an 8-inch touchscreen for local operation, display, and storage, while keeping high-speed 24-bit synchronized sampling and mixed-input flexibility.
Q2: Can it measure IEPE and strain gauges at the same time?
Yes. Channels can be configured with IEPE or strain-gauge bridge inputs within the same system, depending on your channel setup.
Q3: Is 256 kHz sampling synchronized across all channels?
Yes. The system supports synchronous parallel acquisition across all channels, with up to 256 kHz maximum sampling rate.
